Customized DC Gear Motor 22mm Coreless 9V 1500mNm 2.0RPM Low Noise

Dongguan Panda Electronic Technology Co. ,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customized DC Gear Motor 22mm Coreless 9V 1500mNm 2.0RPM Low Noise

Brand Name : PM

Model Number : PM22-Gear Ratio--RE2353BL

Certification : REACH & CE

Place of Origin : China

MOQ : 20 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000PCS per Month

Delivery Time : 20 working days

Packaging Details : L42*W27*H23cm, strong export carton box outside,Poly foam inside

Product Type : dc brushed gear motor

Rated Speed : 2.0RPM to 2651RPM or customized

Rated Torque : 54mNm to 1500mNm or customized

Rated Voltage : 9V to 24V DC or customized

Applicaiton Field : medical appliance, robotics, industrial automation, semiconductor industry, Electric Power Tools Industry Automation

Warranty : 3 Years

Contact Now

22mm DC Gear Motor Coreless Planetary Gearmotor 9V to 24V 1500mNm 2.0RPM to 2651RPM Customizable

Product Tag: 22mm Gearbox Motor, 22mm DC Gear Motor , 22mm Reduction Motor , 22mm DC Geared Motor , 22mm Gear Reduction Motor , 22mm Gear Reducer Motor , 22mm Gearhead Motor , 22mm DC Reduction Motor , 22mm Planetary Gear Motor , 22mm Planetary Gearmotor , 22mm Brush DC Gear Motor

Coreless brush gear motors are a type of electric motor that features a coreless rotor and brush commutation.

  • With a rotor crafted from delicate wire coils instead of heavy iron, they reduce inertia, allowing for swift and efficient operation.
  • Carbon brushes bring electricity to life in the rotor, while a clever gear system fine-tunes speed and torque for precise control.

Advantages of Coreless Gear Motors:

  • Efficiency Champion: The coreless design means less energy wasted, leading to super-efficient motors.
  • Lightweight Advantage: Without that heavy iron core, these motors are much easier to handle—perfect for portable devices.
  • Quick Reaction Time: They accelerate and decelerate rapidly because of their low moment of inertia.
  • Compact Fit: Their small size allows for installation in tight quarters where space is limited.
  • High-Speed Capability: A lighter rotor means they can spin faster, achieving quicker motion.
  • Enhanced Torque: Thanks to fine wire coils, the rotor manages current distribution well, resulting in better torque.

Applications of Coreless Gear Motors:

  • Robotics: Micro coreless gear motors outperform traditional motors in providing rapid and robust joint movements in robotic systems.
  • Model Making: In model making, small coreless gear motors deliver superior speed and torque compared to standard motors, enhancing performance.
  • Medical Devices: These motors offer unparalleled precision for position control in medical equipment, surpassing the capabilities of older designs.
  • Automation Equipment: When it comes to automation, tiny coreless gear motors provide better control and reliability than conventional options in devices like automatic doors and vending machines.
Currently, our brush DC gear motors are available in a diverse range of sizes, from 12mm to 57mm in diameter.

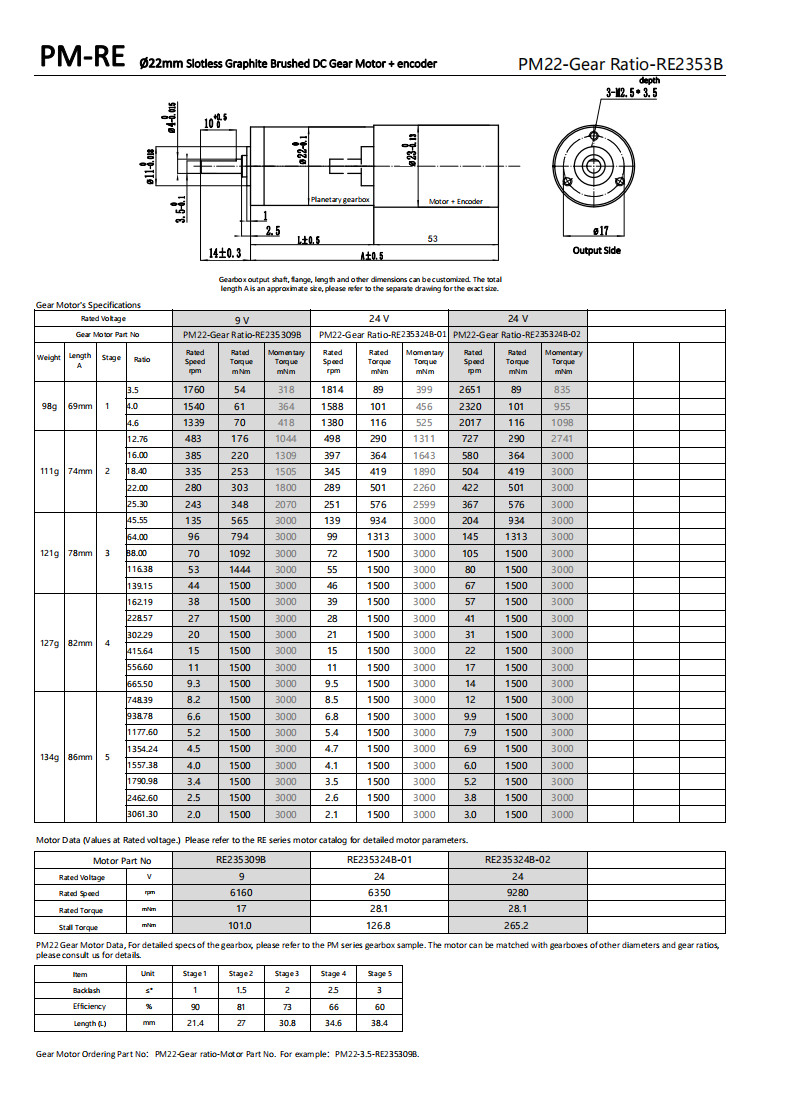

Key Specifications for this Ø22mm dc brushed gear motor:

  • Gearbox Outer Diameter: 22 mm
  • Motor Outer Diameter: 23mm
  • Rated Voltage: 9V DC to 24V DC or customized
  • Gearbox Length: 21.4mm to 38.4mm
  • Reduction Ratio: Wide range from 1: 3.5 to 1: 3061.3
  • Rated Torque: wide range from 54mNm to 1500mNm or Customized
  • Rated Speed: wide range from 2.0RPM to 2651RPM or Customized

Remark:

  • Please contact us for detailed specifications and drawings of the geared motor you need.
  • We offer design and production services for customized geared motors (OEM & ODM).

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing

products at a more economical price point.

To see the product catalogue on our Brushed DC Gear Motors Φ12-57 mm , please

Check Here and download.
