42mm Gearbox Motor Planetary 24V to 48V DC Reduction Motor 10000mNm 1RPM to 2017RPM Customizable
Product Tag: 42mm Gearbox Motor, 42mm DC Gear Motor , 42mm Reduction Motor , 42mm DC Geared Motor , 42mm Gear Reduction Motor , 42mm Gear Reducer Motor , 42mm Gearhead Motor , 42mm DC Reduction Motor , 42mm Planetary Gear Motor , 42mm Planetary Gearmotor , 42mm Brush DC Gear Motor
Coreless brush gear motors are a type of electric motor that features a coreless rotor and brush commutation.
- Their coreless rotor—constructed from fine wire coils—reduces weight and inertia, making them incredibly efficient.
- With carbon brushes facilitating smooth current transfer and a gear train enhancing torque, these motors are perfect for applications that demand both speed and control.
Advantages of Coreless Gear Motors:
- Unmatched Efficiency: Experience a motor that minimizes energy loss with its innovative coreless design—efficiency at its finest!
- Incredibly Lightweight: Enjoy the benefits of a motor that is as light as a feather, making it perfect for all your portable needs.
- Lightning-Fast Response: With a low moment of inertia, these motors accelerate and decelerate in the blink of an eye.
- Space-Saving Solution: Their compact size allows you to fit powerful performance into the tightest spaces.
- Speed Like No Other: Thanks to a lighter rotor, achieve extraordinary rotational speeds for faster operations.
- Torque That Delivers: Fine wire coils lead to even current distribution, giving you the torque you need when it counts.
Applications of Coreless Gear Motors:
- Robotics: Micro coreless gear motors are expertly designed for joint actuation in robotic systems, providing exceptional speed and torque capabilities.
- Model Making: In model construction, these small motors are essential for achieving the necessary high-speed and high-torque support for aircraft and vehicles.
- Medical Devices: Their precision in positional control makes them invaluable in medical equipment, especially in surgical robotics.
- Automation Equipment: Compact coreless gear motors are integral to automation technology, offering precise control for devices such as automatic doors, curtains, and vending machines.
Currently, our brush DC gear motors are available in a diverse range of sizes, from 12mm to 57mm in diameter.
Key Specifications for this Ø42mm dc brushed gear motor:
- Gearbox Outer Diameter: 42 mm
- Motor Outer Diameter: 40mm
- Rated Voltage: 24V DC to 48V or customized
- Gearbox Length: 35.3mm to 65.5mm
- Reduction Ratio: Wide range from 1: 3.47 to 1: 3974.02
- Rated Torque: wide range from 562mNm to 10000mNm or Customized
- Rated Speed: wide range from 1RPM to 2017RPM or Customized
Remark:
- Please contact us for detailed specifications and drawings of the geared motor you need.
- We offer design and production services for customized geared motors (OEM & ODM).
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing
products at a more economical price point.
To see the product catalogue on our Brushed DC Gear Motors Φ12-57 mm , please
Check Here and download.

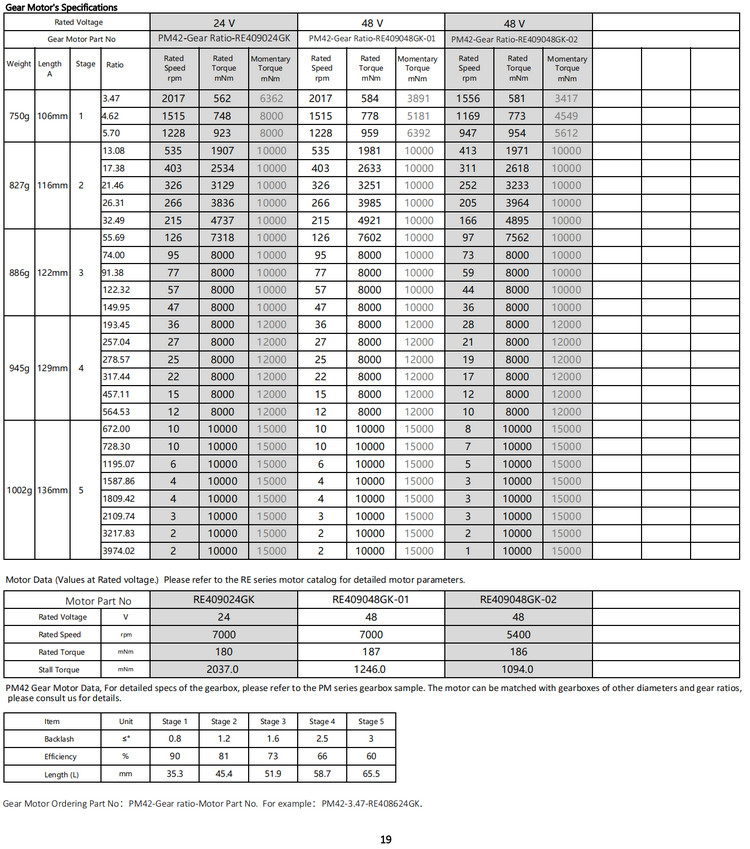

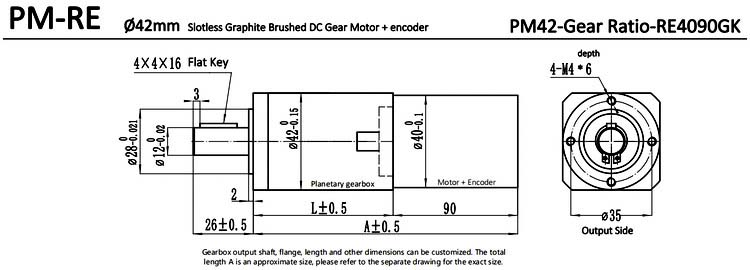

Please review the standard data and dimensions of the gear motor below. Please note that we can provide deep customization
based on your size and data requirements.
Product Tags:
|
|

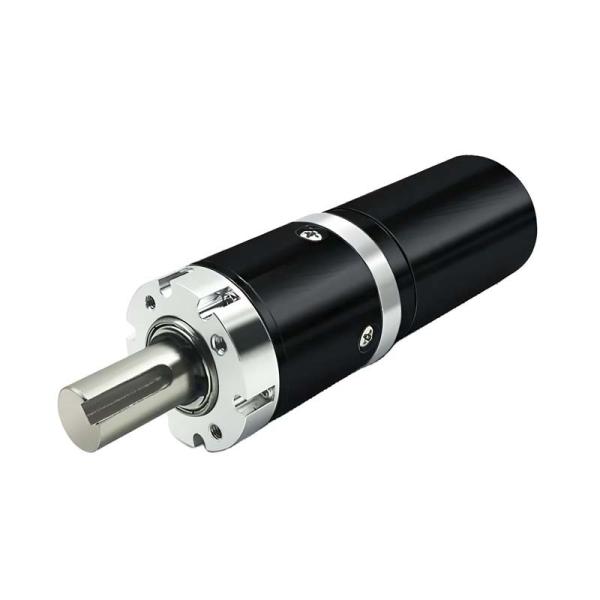

High Strength 24V 42mm Planetary Gearbox Motor 10000mNm 2017RPM Images
|
