Low Cogging 32mm Slotless Brushless Motor 12V 75W 6095rpm Space Saving

32mm Slotless Brushless DC Motor 12V to 48V Low Cogging Motor 75W 6095rpm Customizable

Product Tag: 32mm Coreless Motor , 32mm Low Cogging Motor , 32mm Cogging Free Motor , 32mm Zero Cogging Motor , 32mm Ironless Motor , 32mm Slotless Motor , 32mm Slotless Brushless Motor , 32mm Slotless Brushless DC Motor , 32mm Brushless DC Slotless Motor , 32mm Slotless BLDC Motor , 32mm BLDC Slotless Motor , 32mm Coreless Brushless Motor , 32mm Brushless Coreless Motor , 32mm Brushless Slotless Motor , 32mm Brushless Coreless Motor , 32mm Brushless Motor , 32mm Brushless DC Motor, 32mm DC Brushless Motor, 32mm Brushless Electric Motor , 32mm BLDC Motor , 32mm Brushless DC Electric Motor , 32mm Sensored Brushless Motor , 32mm Sensorless Brushless Motor

Presenting our compact Ø 32mm Slotless Brushless Motor, which comes in sensorless and sensored configurations. We offer a variety of customization options to tailor the motor to your exact specifications and dimensions.

This 32mm Coreless Motor stands out from standard iron core brushless motors due to its unique design that lacks an iron core.

This innovative approach boosts efficiency and overall performance.

Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.

These 32mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.

If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.

To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please

Check Here and download.

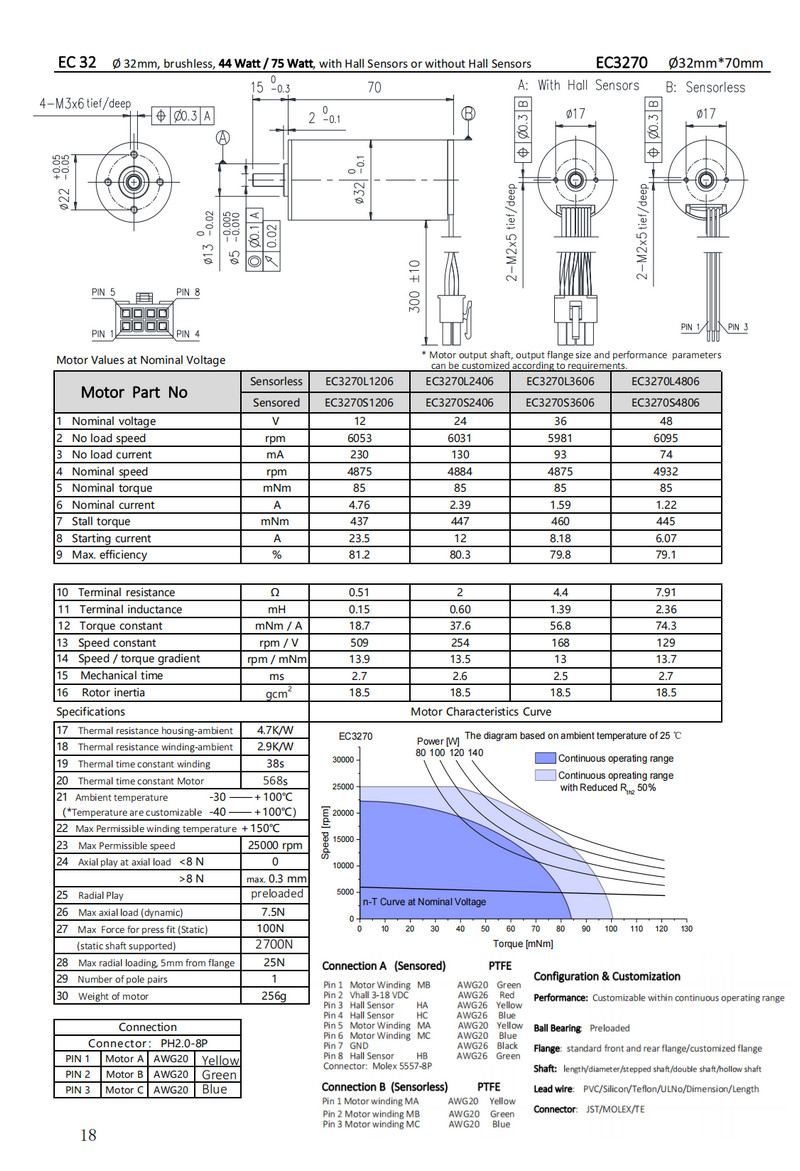

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.

32mm Slotless Brushless Motor

Low Cogging Slotless Brushless Motor

Low Cogging Custom Brushless DC Motor

Low Cogging 32mm Slotless Brushless Motor 12V 75W 6095rpm Space Saving Images
