28mm Slotless Brushless Motor 12V to 48V 80W Brushless DC Electric Motor 8275rpm Customizable
Product Tag: 28mm Coreless Motor , 28mm Ironless Motor , 28mm Slotless Motor , 28mm Slotless Brushless Motor , 28mm Slotless BLDC Motor , 28mm Coreless Brushless Motor , 28mm Brushless Coreless Motor , 28mm Brushless Slotless Motor , 28mm Brushless Coreless Motor , 28mm Brushless Motor , 28mm Brushless DC Motor , 28mm DC Brushless Motor , 28mm Brushless Electric Motor , 28mm BLDC Motor , 28mm Brushless DC Electric Motor , 28mm Sensored Brushless Motor , 28mm Sensorless Brushless Motor
Meet our compact Ø 28mm DC Brushless Motor, which comes in both sensorless and sensored forms. We provide numerous customization options to ensure the motor aligns perfectly with your specifications.
This Coreless Brushless Motor features a unique design that does not include an iron core, distinguishing it from traditional iron core models.
This groundbreaking design enhances efficiency and overall performance.
Compared to iron core or slotted brushless motors, our slotless brushless motors offer superior power density and a more compact form factor while maintaining high speeds and acceleration rates.
These 28mm diameter brushless motors are particularly well-suited for aerospace and medical applications, including medical pumps, robotic prosthetic fingers, fans, blowers, power tools.
If you currently utilize Swiss Maxon Motors, Portescap motors, or Faulhaber motors, we offer equally high-performing motors at a more economical price point.
To see the product catalogue on our Slotless BLDC Motor Φ12-40mm , please
Check Here and download.

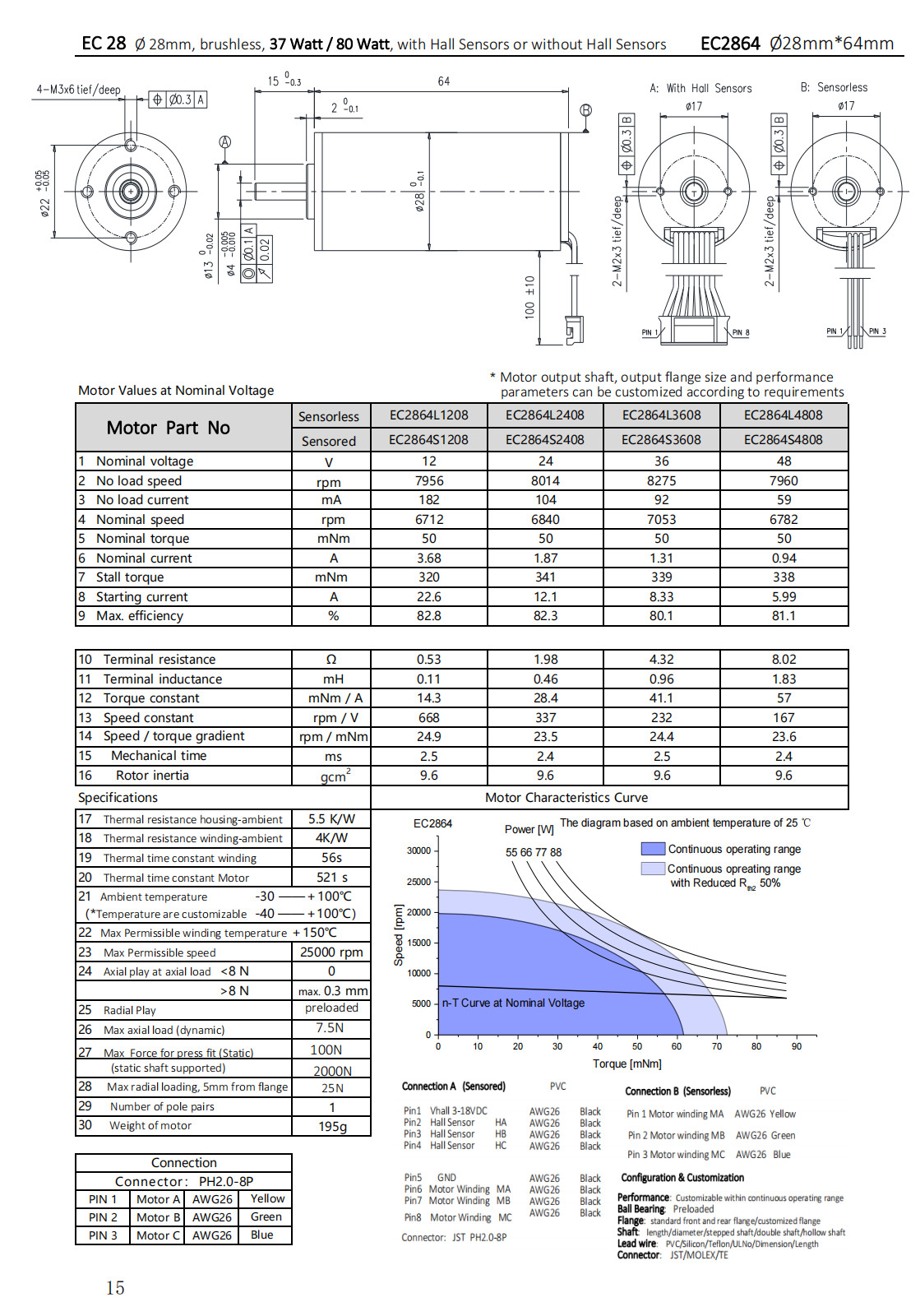

Please review the standard data and dimensions of the motor below. Please note that we can provide deep customization based on your size and data requirements.
